High Drill Ability Rock Reamer Hole Opener For Horizontal Drilling

Brand Name : JS

Place of Origin : Hebei, China

MOQ : 1 piece

Price : bargain

Supply Ability : The construction period of a HHD reamer is 5-7 days

Delivery Time : 15 days -30 days.

Packaging Details : Can be customized + carton

Product Name : HDD hole opener

Origin : Hebei, China

Type of machine : Drilling equipment

Type of processing : Forging

Certification : API

Teeth : Insert button or milled tooth

Form : Soft to hard strata

Contact Now

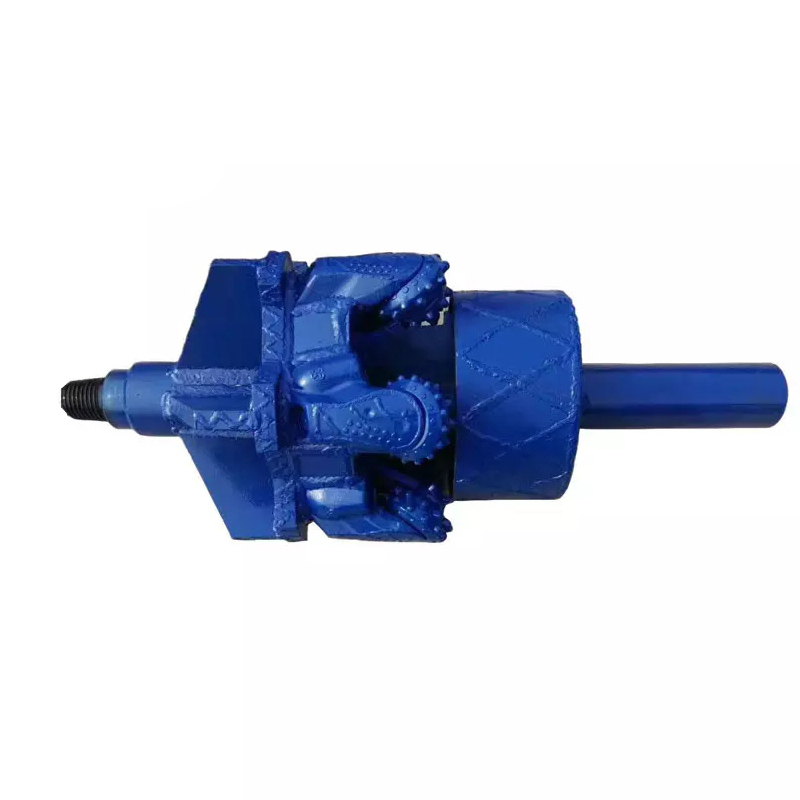

High Quality HDD Openers And Hard Rock Reamers For Horizontal Drilling

Product Description

1. Reamers are mainly composed of four or more cones. The cutting structure with high quality tungsten carbide surfacing or high quality tungsten carbide blade formulation and new technology increases the wear resistance of the reamer. The pilot is a triangle drill bit.

2. High performance O-ring is used for bearing seal and high grade grease.

3. Suitable for large well, mining and infrastructure applications.

IADC	Rock formation	WOB (KN/mm)	PRM(r/min)
415/425/435	Low compressive strength, high drill-ability and extremely soft formation, like shale, clay, sandstone, conglomerate etc	0.35~0.90	140~70
447	Low compressive strength, high drill-ability and soft formation, like shale, clay, sandstone, soft limestone, salt rock, plaster etc.	0.35~1.00	140~60
517	Low compressive strength, high drill-ability and soft formation, like shale, clay, sandstone, soft limestone, salt rock, etc	0.35~1.05	120~50
527	Soft formation with low compressive, like Low compressive strength, high drill-ability and soft formation, like shale, clay, sandstone, soft limestone, salt rock, anhydrite etc.	0.35~1.05	120~50
537/547	Low compressive strength, medium hard formation with hard abrasive interlayer, like Hard shale, anhydrite, soft limestone, sandstone, dolomite with mezzanine, etc.	0.50~1.05	110~40
617/627	High compressive strength, medium hard and thick hard interlayer, like hard shale, limestone, sandstone, dolomite, etc.	0.50~1.05	80~40
637/647	High compressive strength, medium hard and high abrasive formation, like limestone, dolomite, sandstone, chert, etc.	0.7~1.20	70~40

Product Advantage

1. Unique design parameters and a wider blade top extend rock break and increase bottom hole coverage. At the same time, the shear sliding distance of the bottom hole blade is increased, and the ROP of the hard and plastic formation bit is increased.

2. The convex wedge has the characteristics of strong effective cutting ability and fracture resistance, which can effectively increase ROP and improve the service life of the bit. It is suitable for the following strata with moderate soft to moderate hardness.

3. The main tool of the drill is conical spherical pressure block, which is suitable for drilling in hard and brittle strata.

About Us

High Drill Ability Rock Reamer Hole Opener For Horizontal Drilling

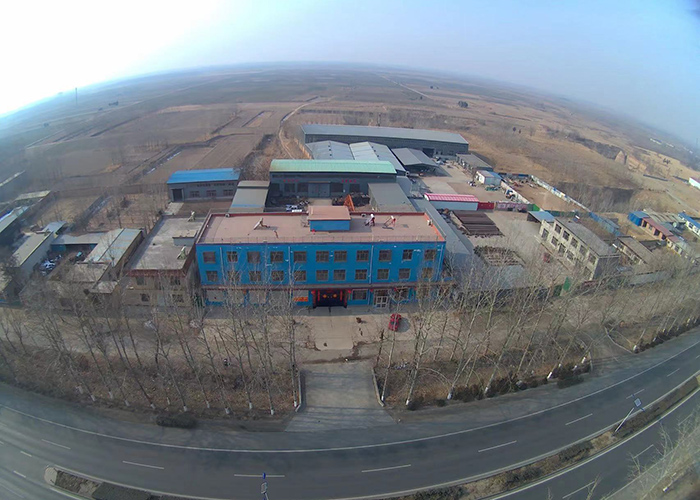

The company is located in Junziguan Village, Shijing Township, the ancient town of civilization, 156+8 kilometers away from the 106 National Road, with convenient and smooth transportation. Over the years, our company has focused on the design and manufacture of rock reaming bits. Quality and management meet and implement ISO 9001:2015 standards.

We always follow the "quality of survival, reputation and development" survival principle and "your demand is our demand" service purpose. Through continuous technological innovation, we strive to build our global brand.

With high quality products, perfect service and good reputation, we are willing to cooperate with our customers to create a better future! Welcome friends to visit the factory!

Usage Scenarios

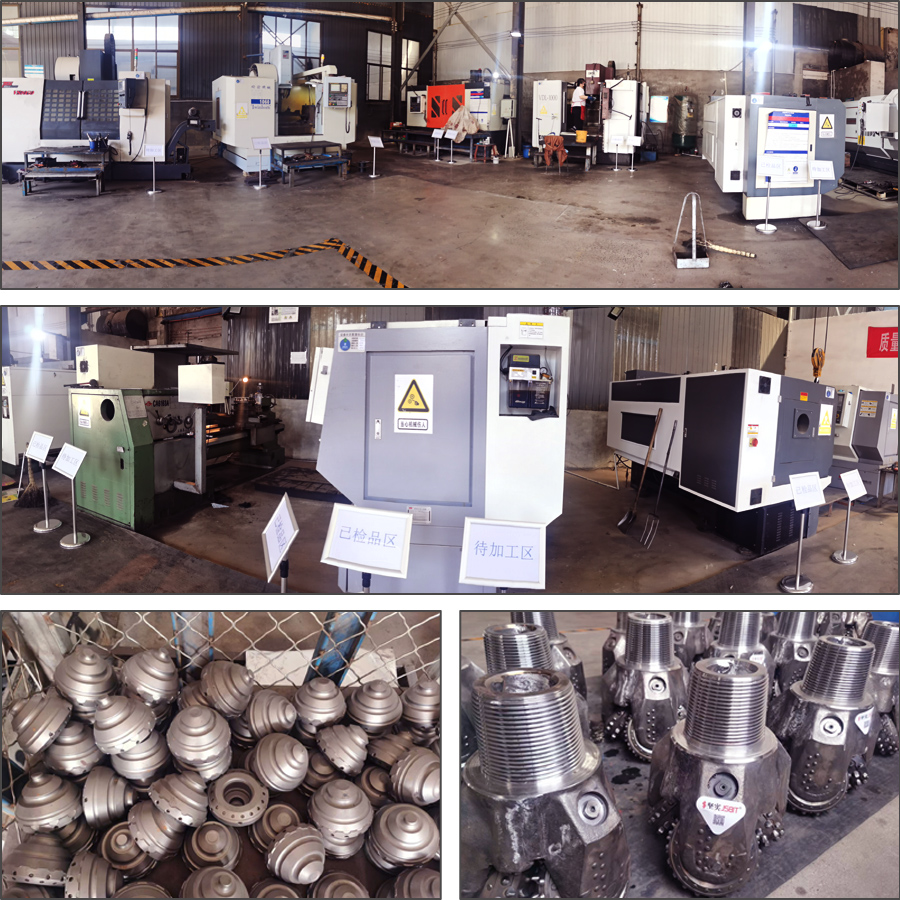

Production Process

Transport

F&Q

1. Who are we?

We are headquartered in Hebei, China, and have been selling worldwide since 2019.

2. How can we guarantee the quality?

Pre-production samples are always used before mass production;

Always carry out final inspection before shipment;

3. What can you buy from us?

Roller cone bit, Pdc bit, drilling machine parts, oil drilling equipment

4. Why buy from us instead of other suppliers?

The company was founded in 2013, specializing in the production of tri-cone drill bits, PDC bits, hole openers, scraper bits and related drilling equipment. The company is located in Hebei, China.
